1. Overall Overview

In recent years, with the influx of a large number of migrants, the urban population has shown characteristics such as a large base, high mobility, scattered living locations, and high difficulty in control. As a result, various types of public security, criminal cases, and other social problems have also shown an upward trend year by year, bringing huge tests and challenges to the people's livelihood, urban comprehensive governance, and public security "fighting, preventing, managing, and controlling". At the same time, the demand for new types of cases such as X investigation and XX at the community level has become increasingly urgent. Therefore, it is urgent to build an intelligent and three-dimensional community safety prevention and control system to improve the level of community safety governance and enhance the comprehensive management capacity of the city.

The "Intelligent Community Security System" follows the design concept of "unified planning, unified standards, unified platforms, and unified management". Through video surveillance, micro checkpoints, facial access control, and various IoT sensing devices within the community, it achieves comprehensive perception of community data and events, and fully utilizes new technologies such as big data, artificial intelligence, and the Internet of Things to build an "Intelligent Security Community System" with big data intelligent applications as the core. It has formed a three-dimensional community prevention and control system with the joint efforts of public security, comprehensive management, streets, and property management, effectively enhancing the management capabilities of special groups, key concerns, involved persons, X, etc., continuously improving the predictive and early warning capabilities, precise strike capabilities, and dynamic management capabilities of government agencies such as public security and comprehensive management, and enhancing the capabilities of public security and comprehensive management. Intelligent level of community prevention and control, improving residents' living happiness index.



2. System composition

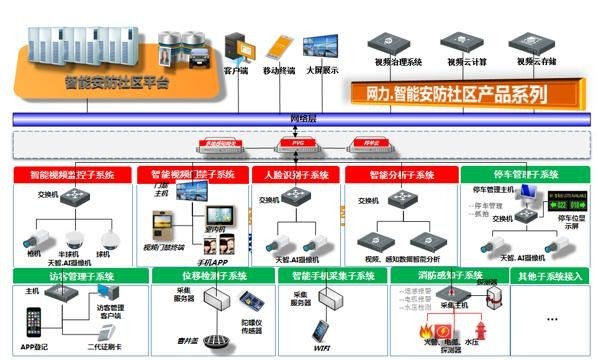

System composition diagram



The intelligent community security system consists of three main parts:

1. Front end perception subsystem

The front-end perception subsystem mainly consists of intelligent video monitoring subsystem, intelligent video access control subsystem, facial recognition subsystem, parking management subsystem, visitor management subsystem, displacement detection subsystem, smartphone collection subsystem, fire perception subsystem, etc., to achieve comprehensive perception of front-end data and events.

The front-end perception subsystem includes IPC intelligent network cameras, intelligent video access control facial recognition subsystems, intelligent robots, etc. IPC intelligent network cameras include multiple intelligent network camera products such as the face capture super starlight gun series, economical cylinder series, economical hemisphere series, etc; Intelligent video access control includes multiple products such as standard 4.3-inch landscape screen and enhanced 10 inch landscape screen.



2. Network transmission subsystem

The networking transmission subsystem mainly includes multi-dimensional perception gateway, PVG video cloud networking, Lingyang cloud, etc., to achieve reliable access to videos, images, structured data, etc., and forward them to the backend application platform.



3. Intelligent Security Community Platform

By cloud storage, elastic computing, and data governance of massive community perception data and business data, various theme libraries, thematic libraries, and technical X method models are formed to provide personalized applications for multiple users such as public security, comprehensive management, residents, streets, and property management.



3. Intelligent security community platform



3.1 Business modules



3.1.1 One Standard and Six Realities

Through a unified standard address library, comprehensive analysis and multidimensional display of community population, housing, units, security facilities, security forces, and police incidents are achieved on the map.

The population module classifies and statistically analyzes the population within the community in a two-dimensional map and graphical format, and can associate and query the "one person, one file" information of individuals.

The real estate module includes floor information, housing information, resident information, and member tag information within the community, and is associated with "one person, one file".

Actual units refer to information about units within and around the community, including unit names, photos, addresses, and detailed information about employees.

The actual power includes the management of relevant personnel such as neighborhood committee cadres, building leaders, volunteers, security guards, cleaners, and green protection.

Actual equipment refers to the collection of available police equipment and fire-fighting facilities within a residential area. By perceiving the actual power and collecting statistics on the actual equipment, the efficiency and accuracy of handling emergencies can be improved.

The actual security facility module mainly manages various perception devices deployed within the community, including high-definition monitoring, facial capture machines, vehicle micro checkpoints, video access control, WIFI probes, fire perception devices, etc.

The intelligent analysis and circulation processing of community control alarms, reporting events, population perception, vehicle perception, alarm perception and other alarm events are achieved through actual alarm events, realizing a closed-loop management of "alarm push response feedback statistics".



3.1.2 Community Business Module

It mainly includes modules such as personnel verification and registration, key personnel and vehicle management and control, and attention to personnel.

The personnel verification registration module has established a community mobile personnel verification mechanism, which compares the perceived and actively discovered personnel at the community level with the population information in real time, thereby achieving normalized control of community personnel.

Establish key personnel and key vehicle management and control modules, and combine community perception technology to achieve control, alarm, and warning management of key personnel and vehicles within the community.

The attention personnel management module establishes a community attention personnel database, which includes elderly people living alone, homeless teenagers, left behind children, impoverished disabled families, etc. The system combines perception data, water, electricity, and gas consumption records for big data analysis, and uses big data intelligence to achieve community care work.



3.1.3 Electronic Map

Two dimensional and three-dimensional maps provide visual displays of community information such as "one standard and six reality".

　　

2D map display

3.2 Application modules



3.2.1 Dynamic Perception Application

Realize facial recognition, door opening perception, vehicle passing perception, WIFI perception, fire protection perception, video perception, displacement perception, etc. within the community, and real-time control of various types of information within the community.

The facial perception module obtains the latest facial capture photos, including the capture location and time; And conduct facial comparison to form a personnel video identity database.

The door opening perception module obtains the latest door opening record, including the name of the person opening the door, ID number number, door opening method, time, place, door opening screenshot and short video.

The passing vehicle perception module obtains the latest passing vehicle records, including passing license plate number, time, location, whether entering or leaving, and whether the vehicle is registered in the community.

The WIFI sensing module obtains the latest mobile MAC records of the community through WIFI sniffing.

The fire sensing module is divided into smoke sensing, electrical sensing, and water pressure sensing;

The list of displacement sensing modules displays relevant information and corresponding photos of manhole covers in the community.

The abnormal perception module provides early warning and alarm for events such as doors not being closed, card swiping abnormalities, fire alarms, electric leakage, and abnormal water pressure in fire hydrants.



3.2.2 Intelligent Video Analysis Applications

Through intelligent analysis of real-time videos from community video surveillance, alerts are issued for abnormal situations such as vehicle occupation and climbing in the community, and a map search function is provided to identify people, vehicles, and objects with similar features in the massive structured video image data of community big data.



3.2.3 Application of Community Big Data Analysis

The community cloud search module realizes intelligent retrieval of various data resources in the intelligent security community system.

The one person one file module searches the personnel's file according to the ID number. The file contains personnel photos, basic information, tag information, and houses, vehicles, face snapshots, door opening records, alarm events, etc. associated with the person.

The one bedroom one file module searches based on the community, building number, and room number, displaying comprehensive information of a household, including household members, homeowner relationships, indoor vehicle information, water, electricity, and coal consumption.

The one car one file module collects and aggregates basic vehicle information, community micro checkpoint passing records, parking lot records, and combines with public security checkpoint identification information to comprehensively display the overall situation and trajectory information of the vehicle.

The trajectory analysis module inputs a facial photo, dynamic perception data, and license plate number to query its travel records during a specified time period, and displays them in chronological order on the map to accurately depict the activity trajectory of the object.

The community big data analysis model module is based on the perception data and business data gathered at the community level, and constructs various technical combat models that are close to the practical application of the community. It mainly includes the community population analysis model based on people, the community key personnel analysis model, the leakage and loss of control analysis model, as well as more than ten community big data analysis models based on vehicles, including the round-trip area analysis model, the illegal occupation analysis model, and the frequent appearance analysis model.

The data warehouse visualizes the accumulation of data resources such as "one standard, six reality" and "dynamic perception" within the intelligent security community system, and displays them at multiple levels such as single community, district, and city level.



3.2.4 Community WeChat and APP

The community WeChat and APP include modules for querying personnel, housing, and vehicle files, mobile control of key personnel and vehicles, and mobile terminal warning and alarm.

The personnel, housing, and vehicle file module provides users such as public security and comprehensive management with the function of querying personnel, housing, and vehicle file information within the community. Different user roles have different query and viewing permissions.

The key personnel and vehicle movement control module provides functions for public security and other users to register, verify, and deploy key personnel and vehicles.

The early warning module realizes timely alerting and warning of various perception and alarm events in the community on mobile terminals.



3.3 Management module

Implement intelligent operation and maintenance of the platform, including user management, role management, permission management, unit management, log management, interface management, device management, system configuration, operation and maintenance management, database management, and other functions.



4. Program Features



4.1 Integration of Multi dimensional Information through Pan Perception

Collecting information from different dimensions through front-end devices, while connecting to multiple networks and various business systems to obtain data, cleaning the data sources, and then aggregating them through networking to display and call based on GIS.



4.2 Strike: Precise crackdown on criminals

Through correlation analysis of face data, access control data and case data, the suspect can be traced, controlled accurately, located quickly and attacked effectively.



4.3 Prevention: Reduce the incidence of various cases

By establishing various personnel thematic databases, we can achieve refined management of personnel attributes and provide early warning and prevention measures for suspicious individuals entering the community or unit.



4.4 Management: Community Grid Management

Strengthen the collection of "one standard and six practices" data, establish a refined community grid, collect statistics on the distribution of various personnel, and improve the level of community grid management.



4.5 Control: Key personnel control
